This is a fork of bug #55611, which is invalid due to my old stupid kernel config. As of linux-3.9-rc5, docking no longer results in rescanning the PCI bus on my laptop. With the correct kernel config, it worked in linux-3.8.2, but triggered other bugs. I will bisect later and add the needed information to this bug report. For now, I will attach both configs, just in case if this is again a stupid mistake in the config.
Created attachment 98341 [details] 3.8.2 config (works)
Created attachment 98351 [details] 3.9-rc5 config (fails)
Created attachment 98361 [details] Dmesg from 3.8.2 This dmesg was obtained with a hacked dsdt from bug 55611
Created attachment 98371 [details] Dmesg from 3.9-rc5
Hi Alex, For the v3.9-rc5 problem, please make sure: 1 If you have installed any of the pmtool like laptop_mode, please do not use it for the test. 2 All control file for the pci devices should be set to on instead of auto before dock: # cd /sys/devices/pci0000:00 # for i in `find . -name control`; do echo on > $i; done Then do the dock/undock test, thanks.
Created attachment 98411 [details] Dmesg from 3.9-rc5, with echo on > control As you directed, I uninstalled laptop-mode-tools and ran the for loop. Result: docking/undocking works, but results in kernel warnings that will be reported as a separate bug.
It works even without the for loop. So the curlpit was in laptop-mode-tools. Do I understand correctly that this observation makes the kernel bug invalid, and I should report this incompatibility to laptop-mode-tools maintainer? If so, please close the bug as invalid. If the new kernel should not have created the incompatibility, please keep the bug open, and I will bisect.
I reinstalled laptop-mode-tools and bisected again. The commit that seems to interfere with laptop-mode-tools is: commit 6c0cc950ae670403a362bdcbf3cde0df33744928 Author: Rafael J. Wysocki <rafael.j.wysocki@intel.com> Date: Wed Jan 9 22:33:37 2013 +0100 ACPI / PCI: Set root bridge ACPI handle in advance Could you please explain why such bad interaction of this commit with laptop-mode-tools exists on my laptop?
Hi Alex, No need to file another bug, let's just use this bug to solve automatic re-scan problem. And I'll add Ying, he probably knows what happened here.
Created attachment 98661 [details] Debug patch for acpi hotplug Could you try this patch against 3.9-rc5, with laptop-mode-tools installed and enabled? Please use the following command line to collect some information before/after hotplug. grep . /sys/bus/pci/devices/*/power/runtime_status
Hi Alex, If you have windows installed, can windows handle the dock automatically?
Aaron: I don't have Windows installed now. But it definitely worked there. Unfortunately, it is rather problematic to install it again, as that would mean erasing the whole hard drive (the recovery flash stick is the only way to install Windows 7 on this laptop, and it can do only that). Huang: before docking, with your patch: # grep -H . /sys/bus/pci/devices/*/power/runtime_status /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active After docking: # grep -H . /sys/bus/pci/devices/*/power/runtime_status /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:08:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0a:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0a:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:0a:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:14:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:15:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:15:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:16:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:16:00.1/power/runtime_status:active /sys/bus/pci/devices/0000:17:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:18:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:18:01.0/power/runtime_status:active /sys/bus/pci/devices/0000:18:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:18:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:18:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:19:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:1a:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:1b:00.0/power/runtime_status:active and all devices show up in lspci. So your debugging patch actually fixes or at least hides the bus-rescanning problem.
s/the whole hard drive/the whole RAID of SSDs/
Please disregard the comment above. I thought that laptop-mode-tools were installed and enabled, but they weren't. Will retest now.
Before docking: # grep -H . /sys/bus/pci/devices/*/power/runtime_status /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active After docking attempt: # grep -H . /sys/bus/pci/devices/*/power/runtime_status /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended After undocking: # grep -H . /sys/bus/pci/devices/*/power/runtime_status /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended
Played a bit more with that. Here "after find" = after the following commands originally suggested by Aaron: # cd /sys/devices/pci0000:00 # for i in `find . -name control`; do echo on > $i; done # Initially /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active # After find /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active # After dock (1) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended # After undock (1) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended # After find (2) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active # After dock (2) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:08:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:0c:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0d:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:0d:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:0e:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0e:00.1/power/runtime_status:active /sys/bus/pci/devices/0000:0f:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:01.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:11:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:12:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:13:00.0/power/runtime_status:active # After undock (2) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended # After find (3) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended # After dock (3) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:08:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:09:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:0c:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0d:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:0d:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:0e:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:0e:00.1/power/runtime_status:active /sys/bus/pci/devices/0000:0f:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:01.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:03.0/power/runtime_status:active /sys/bus/pci/devices/0000:10:04.0/power/runtime_status:active /sys/bus/pci/devices/0000:11:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:12:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:13:00.0/power/runtime_status:active # After undock (3) /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended # After dock (4) # CPU lockup, recursive fault

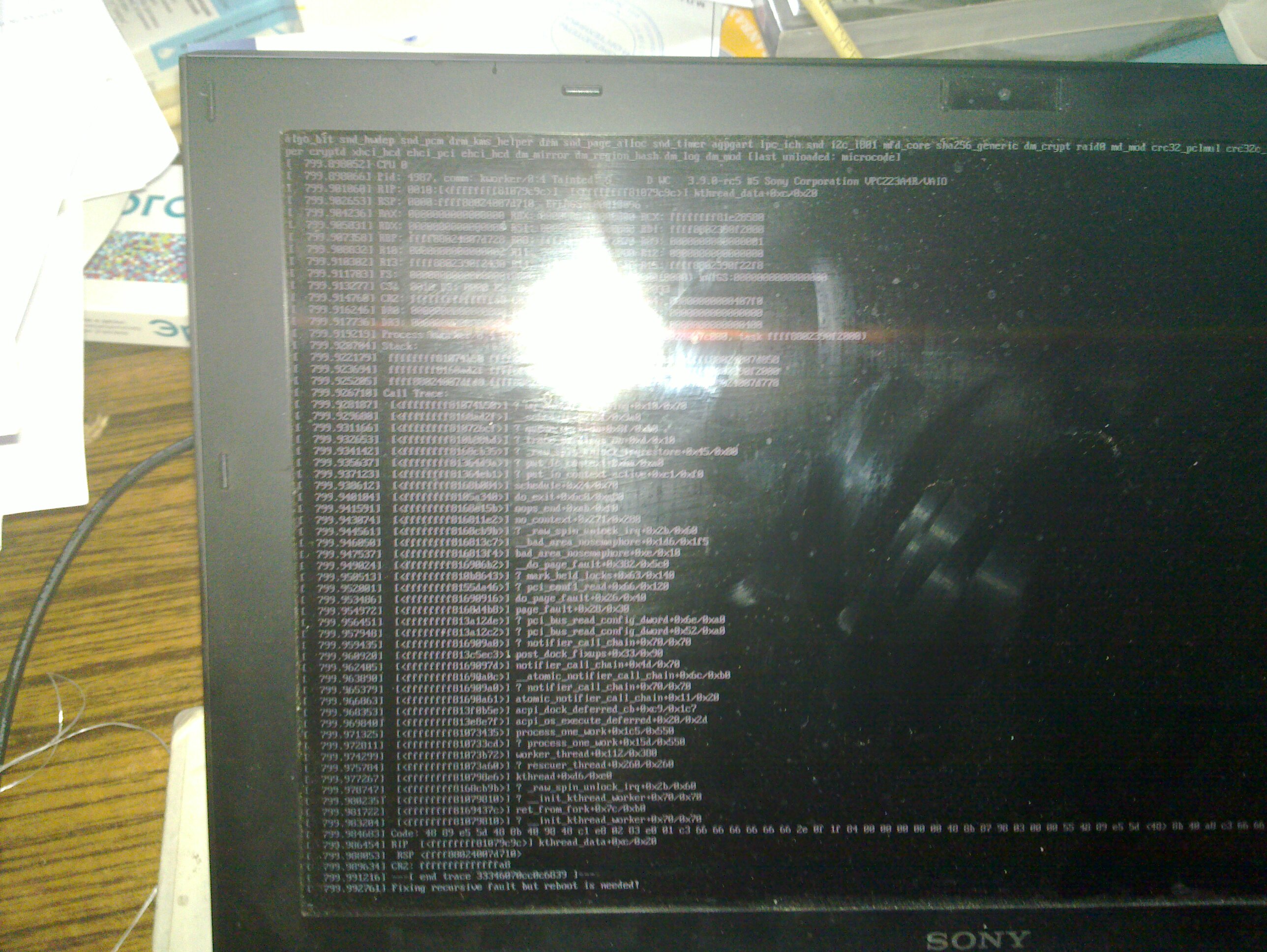

Created attachment 98711 [details] Screen photo (1), sorry for the flash
Created attachment 98721 [details] Screen photo (2), again sorry for the flash
Created attachment 98731 [details] Screen photo (3), reproduced without flashlight
Created attachment 98751 [details] Screen photo (4), with better visibility of text at the bottom Photos (1) and (2) are from the first occurrence of the lockup, photos (3) and (4) are from another attempt to reproduce. In both cases, the lockup happened on docking.
(In reply to comment #16) > Played a bit more with that. Here "after find" = after the following commands > originally suggested by Aaron: > > # cd /sys/devices/pci0000:00 > # for i in `find . -name control`; do echo on > $i; done > > # Initially > /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active > /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active > # After find > /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:active > /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:active > # After dock (1) > /sys/bus/pci/devices/0000:00:00.0/power/runtime_status:suspended > /sys/bus/pci/devices/0000:00:02.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:16.0/power/runtime_status:suspended > /sys/bus/pci/devices/0000:00:1a.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1b.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.1/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.3/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1c.6/power/runtime_status:suspended > /sys/bus/pci/devices/0000:00:1d.0/power/runtime_status:suspended > /sys/bus/pci/devices/0000:00:1f.0/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.2/power/runtime_status:active > /sys/bus/pci/devices/0000:00:1f.3/power/runtime_status:suspended > /sys/bus/pci/devices/0000:02:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:03:00.0/power/runtime_status:active > /sys/bus/pci/devices/0000:04:00.0/power/runtime_status:suspended > /sys/bus/pci/devices/0000:05:00.0/power/runtime_status:suspended It appears that docking does not work for the first time, but it works for the second and third time. So is it possible for you to test the comment #10 patch with multiple times docking/undocking?
Hi Alex, If you have another computer, can you please try to setup netconsole to check the crash message? The standard netconsole document is here: https://www.kernel.org/doc/Documentation/networking/netconsole.txt And there are a lot others you can google if you need. Thanks.
BTW, if you dock/undock several times with a v3.8 kernel, will it also crash?
For comment #21: yes, the second docking attempt works.
For comment #23: thanks for prompting me to try. The result is that, with laptop-mode-tools installed, on 3.8.2 docking works only on the first attempt. On the second and further attempts, the PCI bus is not rescanned. I.e. I get the opposite of the 3.9-rc5 behaviour, where the rescan happens only on the second docking attempt and later. As for the crash - yes, with laptop-mode-tools uninstalled, the crash is reliably triggered by the second docking on any kernel. I will capture it using netconsole later today.
A little confused about the exact testing steps. Could you test with - 3.9-rc5 + comment #10 patch - laptop-mode-tools installed and enabled - without "for i in `find . -name control`; do echo on > $i; done" script And could you post the result of grep . /sys/bus/pci/devices/*/power/runtime_status before/after dock, and post the dmesg?
Huang, the result of grep during and after your testing steps is in comment #15. Dmesg will be posted later today.
Created attachment 98871 [details] Full dmesg from 3.9-rc5 I have attached a complete dmesg from 3.9-rc5, with the debugging patch, with laptop-mode-tools installed. This dmesg was stitched from two parts. The part before "netconsole test" is the output of the local "dmesg" command, and after that, I have added all lines captured over the netconsole. In the middle, I have logged the active/suspended state by modifying the command as follows: for line in `grep -H . /sys/bus/pci/devices/*/power/runtime_status` ; do echo $line > /dev/kmsg ; done There was no messing with the control files this time. Timeline: @177 seconds: initial grep test before docking @191-194: first docking, unsuccessful @212: grep test while "docked" but with PCI devices invisible @223-224: undocking @234-235: grep test @247-250: docking, with PCI devices detected @255: grep test @270-271: undocked @283: grep test @300-303: dock + crash later: aftermath
(In reply to comment #28) > Created an attachment (id=98871) [details] > Full dmesg from 3.9-rc5 From your dmesg, it appears that acpiphp.debug=1 is not in kernel command line. If not, could retest it with that kernel command option?
And please also add acpi.aml_debug_output=1 to the command line, thanks.
Created attachment 98931 [details] Dmesg from 3.9-rc5 with debug flags I have recaptured the dmesg with the debug flags. However, as there is no AML debug output in the dmesg, I think that Aaron wanted me to use his custom DSDT. Will redo the log now.
Created attachment 98951 [details] Dmesg from 3.9-rc5 with debug flags and custom DSDT Just in case, here is a full dmesg with Huang's debug patch, various debug flags, and Aaron's custom DSDT from bug #55611 (the one that only adds debug output and does not call _Q07).
(In reply to comment #32) > Created an attachment (id=98951) [details] > Dmesg from 3.9-rc5 with debug flags and custom DSDT > > Just in case, here is a full dmesg with Huang's debug patch, various debug > flags, and Aaron's custom DSDT from bug #55611 (the one that only adds debug > output and does not call _Q07). This is very helpful! Thanks a lot!
Created attachment 98971 [details] Debug patch 2 for acpi pci hotplug I found a bug in my previous debug patch. Could you test this new version? Please test it similar as that in comment #32. With and without Aaron's custom DSDT.
Created attachment 98991 [details] Buggy dmesg with custom DSDT Sorry, it seems that you added a bug (or exposed it), not fixed. Now the kernel crashes on the first dock attempt.
Created attachment 99001 [details] Buggy dmesg without custom DSDT Without custom DSDT, the kernel cannot even write the complete crash log to network.
Created attachment 99171 [details] Debug patch 3 for acpi pci hotplug Sorry, the comment #34 patch introduce a new bug. Please test with this new version. Hopefully it can fix that bug.
Created attachment 99181 [details] Full dmesg from 3.9-rc5 with custom DSDT With your debugging patch, PCI devices show up on the first docking attempt, even with laptop-mode-tools installed. So it looks like the non-rescanning problem is solved. However, as before, on the second docking attempt the kernel crashes. Please see details in the attached dmesg output.
Created attachment 99191 [details] Full dmesg from 3.9-rc5 without custom DSDT You also asked for a dmesg without custom DSDT, so here it is.
Thanks Alex. And the custom DSDT shouldn't be needed, I missed some code in the PCI dock hotplug processing code. On dock, the driver will notify the pci device about dock event, so no need to add _Q07 in _DCK.
Thanks Alex. Could create another bug report for kernel crashes on the second docking? Because it appears that the root cause and fixing patch will be different.
Sure, I will open that second bug from home. See also bug #56531 for the resource assignment issue that may be the root cause. As for this bug: do I understand correctly that the "debug patch" from comment #37 is the proper fix for the non-rescanning problem? If so, this bug can be closed as CODE_FIX once the patch enters some public git tree.
Moved the crash on the second docking attempt to bug 56841
(In reply to comment #42) > Sure, I will open that second bug from home. See also bug #56531 for the > resource assignment issue that may be the root cause. > > As for this bug: do I understand correctly that the "debug patch" from > comment > #37 is the proper fix for the non-rescanning problem? If so, this bug can be > closed as CODE_FIX once the patch enters some public git tree. At least, I think the issue is root caused. I will work on a more formal fix patch.
Hi, Alex, I found this bug has been fixed by commit de7d5f7 "PCI/PM: Disable runtime PM of PCIe ports" in another way, which has been merged by kernel v3.9. Could you help us to verify whether v3.9 fixed this bug?
Sorry, cannot test due to a physical mishap. The bag with the laptop fell, and now it shuts itself down under the lightest load.
Kernel 3.9 includes commit de7d5f7 "PCI/PM: Disable runtime PM of PCIe ports" that should fix the problem reported here.
The laptop has been repaired. The bug indeed no longer exists in kernel 3.9.4, but the 3.10-rc3 kernel also does not want to rescan the PCI bus, regardless of laptop-mode-tools. I will open a separate bug for that once I examine the kernel config once again and bisect the regression.
